Chiller Air Conditioner System

HVAC Chiller Air Conditioner System

Why Choose GESON Chiller?

Are you looking for a professional chiller air conditioner system manufacturer?

Geson offers a good selection of chiller air conditioner systems for various applications.

For quality chiller air conditioning, Geson is the name to trust.

Geson chiller focuses on Industrial/Commercial water chiller over 15 years.

Offers one-stop water chiller solutions with the highest quality and safest products to customers globally.

Here, you will have the ultimate economical solution.

Including Water-cooled chillers, Air-cooled chillers, Screw Chillers, Scroll Chillers, Centrifugal chillers, Water(ground) source heat pumps, Air source heat pumps and etc.

Geson has been exported to the Americas, Europe, Middle East, Africa, Southeast Asia, and its, and was praised by customers all over the world.

If you have more questions about water chillers, free to contact us.

Contact with Experts
Request for Catalogue

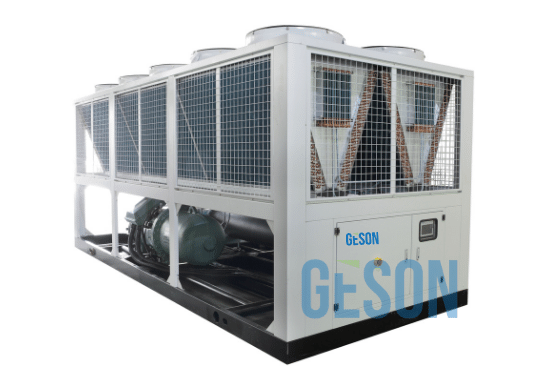

Chiller Air Conditioning System
  • 100ton~500ton cooling capacity.
  • 12/7℃ for the HVAC system.
  • 40000 hours failure-free stable operating.
  • High efficiency shell and tube evaporator.
  • Completely tested before the delivery from the factory.
  • Fully tested in the factory.

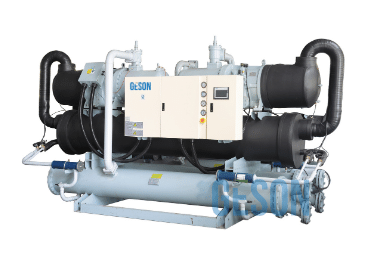

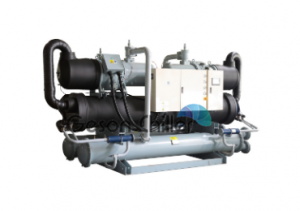

Water Cooled Chiller System
  • 100~400 Ton cooling capacity.
  • 35% higher efficiency with high COP.
  • Failure-free operation >=40000hours.
  • Double, or Four compressors
  • Schneider electric parts, SIEMENS PLC touch screen controller;
  • Components: Screw Compressor, PLC controller, A.C contactor, Thermal overload relay, Heat exchanger, Filter, Expansion valve, and ect.

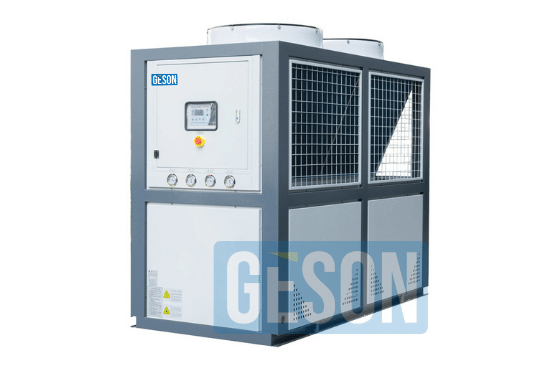

Chiller Air Conditioner System
  • 10kw-200kw cooling capacity
  • Built-in a water tank and water tank
  • No need for the water tower
  • Easy to maintain and service.
  • Can work well in any environment.
  • The heating and cooling function is also available.

GESON Water Chiller Manufacturing

semi-hermetic screw compressor
  • Compressor

    Using high-efficiency semi-hermetic screw compressor, stable operation, low noise and vibration

  • Advanced control, stable quality, reliable performance

    Adopt advanced microcomputer control technology, full Chinese man-machine display interface, friendly operation interface. The user knows the operating conditions of the unit at any time.

    The compressors, fans, refrigeration system accessories, computers and electronic control components used in the unit are all imported from famous foreign companies, with good quality, accurate controller and reliable performance

  • Air condenser

    Air condenser is made of high-efficiency inner grooved copper tubes and corrugated strengthened aluminum fins.

Air Cooled Screw Chiller Datasheet

Model GS-560WD
Cooling Capacity (kW) 560
Taotal Power (kW) 118
Refrigerant R410A
Compressor Type Semi-closed 5:6 asymmetric twin-screw compressor
Leaving Water Temp (℃) 7
Entering Water Temp (℃) 12
Shipping Weight (kg) 2380
Operating Weight (kg) 2630
Length (mm) 3300
Width (mm) 1050
Height (mm) 1900

Advantages of Geson Chiller

We want to be your expert chiller manufacturer in China

 Geson Chiller offers more than 15 years of experience in the chiller manufacturing industry. We can supply you with chiller solution for every need – big or small.

In those years of experience, we have worked with a wide range of companies needing different chiller solutions for every application. We know how to calculate the cooling load requirement and the appropriate chiller size to meet your requirements. If you have any questions about choosing the right system for the job, we can recommend the best solution.

The years of experience in the industry are a testament to the quality and reliability of our chillers. We have worked with numerous businesses and they depend on us to provide them with the best chiller solutions for their operation. It speaks to our longevity as a business and we hope to provide the same quality service to you and your business.

Quick Quote

Geson Chiller is your one-stop solution for all of your chiller needs. We have a wide range of products to choose from such as water cooled chiller, air cooled chiller, screw chiller, scroll chiller, HVAC chiller, industrial water chiller, process chiller, injection molding chiller, and heat pumps.

You do not need to look elsewhere because everything you need to build an efficient chiller system is right here. Our range of products ensures that we can cater to any industry and for any cooling need. We can provide you with a complete package that is ready for installation on your site. We can also customize the design of the chiller unit to match your unique specifications.

We can also provide additional parts and services if you wish to expand your chiller unit capacity, or if you want to make modifications. Whatever it is you need, you can reach out to us for your concerns and we can help you out.

Quick Quote

Geson Chiller manufactures all types of chiller systems – from standalone units to portable ones. We also have central chillers for large-scale use or high-rise buildings. We can even provide chiller systems for industrial processes or residential and office use.

We specialize in industrial and commercial chillers. Therefore, we can provide every type of chiller that you can imagine. We have air or water cooled chiller. We also offer different types of chillers based on the type of compressors used. We work closely with you to ensure that you have all of the components you need to achieve your desired cooling effect.

We also offer chillers at different cooling capacities. We manufacture chillers with cooling capacities ranging from 3 tons to 4500 tons. Our chillers can operate at a temperature of as low as -145 degrees Celsius to 25 degrees Celsius. We offer a complete full product series to provide different solutions for different cooling requirements.

Quick Quote

Geson Chiller offers the highest quality chillers that can meet global quality standards. It is our goal to not only provide chiller solution for your needs, but also one that is superior in quality and safe.

How do we ensure superior quality? All of our chillers go through top quality control procedures. This is how we control the quality and safety of our products when used for various applications.

We have a team composed of professional R&D engineers along with professionals with manufacturing experience. Our team members work together to design and build the highest quality chillers for your processes. This is how we ensure that the chillers we manufacture are of the highest quality standard so you can get the best results from their use.

In addition, we employ the use of the highest quality parts for the components and rely on state-of-the-art technology and equipment. This is how we can guarantee the quality of our chiller systems from start to finish of the manufacturing process.

Quick Quote

Geson Chiller is recognized as one of the top chiller manufacturers in China and some parts of Asia. However, our chiller products are exported to various parts of the world.

Our expert team of chiller manufacturers can satisfy export-quality production to ensure that we cater to customers from all over the world. Our chillers have been exported to North and South America, Southeast Asia, Middle East, and Africa.

Our global market reach continues to expand as we continue to gain global attention with our products. We strive to continually improve on the quality of the chillers we manufacture to suit the unique specifications of each industry we serve.

It is our aim to be recognized as the top and expert chiller manufacture in the world, and not just in China.

Quick Quote

Geson Chiller offers a wide range of chiller products to choose from. It is part of our commitment to become recognized as a one-stop solution for all your chiller needs. However, we can also customize our chiller solutions to suit your unique cooling requirements.

If, for whatever reason, our current range of chillers that we offer is unable to meet your specific requirements, feel free to reach out to us. Our team of expert engineers in chiller manufacturing can develop a unique design according to your desired cooling capacity, chiller size, and the specific type of cooling needed.

Our range of chillers can cater to a wide range of industries. The wide application of our chillers include commercial facilities, chemical industry, plastic injection, pharmaceutical, ice rink projects, computer server room, food and beverage processing, cold storage rooms, die casting, printing, laboratory equipment room, and more.

If you belong to any of these industries (or not), we can cater to your specific chiller needs. There is no build to big or small for us at Geson Chiller.

Quick Quote

All Types of Industrial Water Chiller Products

Modular Air Chiller

Modular Air Chiller

Air Source Heat Pump

Air Source Heat Pump

Water Source Heat Pump

Water Source Heat Pump

Water Tower

Water Cooling Tower

Chiller AC

Air Coditioning Chiller


Chiller For Plastic Industrial

View More

Beer And Wine Fermentation Chiller

View More

Chemical Processing Chiller

View More

Computer Data Center Chiller

View More

Food And Dairy Chiller

View More

Hotel HVAC Chiller

View More

MRI And Laser Chiller

View More


View More


View More

Customized Chiller Air Conditioner System

Chiller air conditioner system is special devices that chill water and then distribute them to coils, air handlers, and heat exchangers to make the air cooler.

Chiller air conditioning systems have seen various applications in commercial and industrial settings.

Send Your Inquiry Now

Customized Chiller Air Conditioner System For HVAC | GESON Chiller

Chiller air conditioner system has seen various applications in commercial and industrial settings.

These days, certain types found their ways in homes, too.

Geson offers a good selection of chiller air conditioning systems for various applications.

For quality chiller air conditioning, Geson is the name to trust.

What is a Chiller Air Conditioning System

Chiller air conditioner systems are special devices that chill water and then distribute them to coils, air handlers, and heat exchangers to make the air cooler?

The system circulates the water incessantly for re-cooling.

Generally speaking, chillers follows the principle of vapor absorption refrigeration cycle.

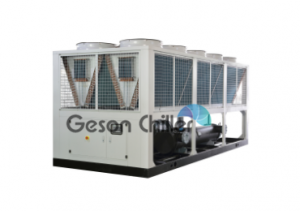

Figure 1 Chiller Air Conditioner System

Figure 1. Chiller Air Conditioner

How Does a Chiller AC System Work?

Chillers work by circulating cool water into the system, which will then remove heat source from the air.

The cold water produced is process water, which will be the one responsible for transferring heat to and from the chiller.

A chiller AC system has different parts and components to get this process to work.

What Does A Chiller Air Conditioner System Do?

A chiller air conditioning is a type of a cooling system.

Its main use is to remove heat from a certain area, thus making it cool and comfortable.

A chiller AC system can provide consistent pressure and temperature to homes, buildings, and industrial structures.

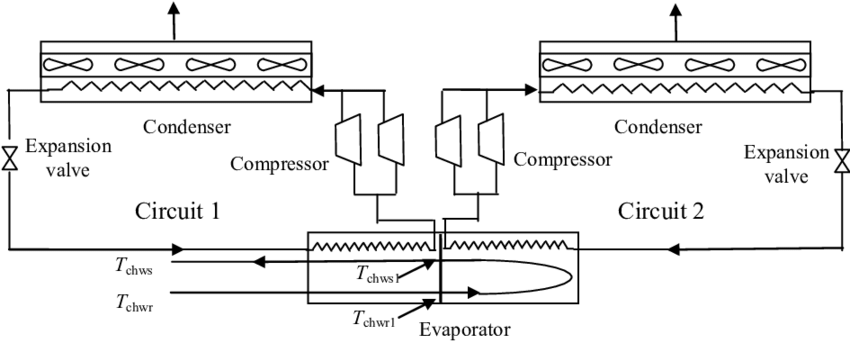

Air Cooled Chiller Diagram

Air Cooled Chiller Diagram

What are the Parts of a Chiller Air Conditioner System?

The main parts of a chiller air conditioning system are the compressor, condenser, expansion valve, power unit, controls, and water boxes.

The job of the compressor is to move the refrigerant while the condenser transfers heat from it.

The refrigerant cycle will move towards the expansion valve to expand it before passing through the evaporator to remove heat.

The controls, power unit, and water boxes are equally important components that make sure that the entire process works.

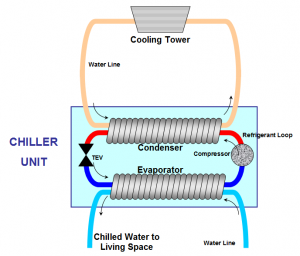

Figure 2 Chiller Air Conditioner System Diagram

Figure 2. Chiller Air Conditioner System Diagram

Why Are Chiller Air Conditioner Systems Used?

A chiller air conditioner systems cools and dehumidifies the air.

It regulates the temperature and humidity levels, and they are most effective for use in confined areas.

Water chiller air conditioner systems are available in various sizes and capacities, making them suitable for buildings, offices, and homes.

Do Chiller Air Conditioner Systems Need Cooling Towers?

Chiller conditioner systems that are air-cooled chiller don’t normally require a cooling tower.

The chillers installed on the roof of a building use fans to blow the heat over.

The water-cooled chillers, on the other hand, need a cooling tower because they are usually installed in basements.

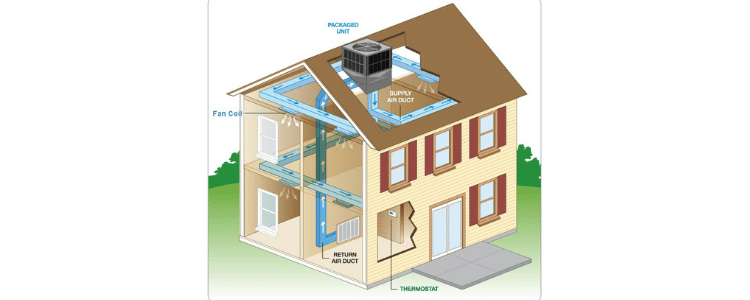

Chiller Air Conditioner For Home

Chiller Air Conditioner For Home

Which Type of Chiller Conditioner System is Best?

Between an air-cooled and water-cooled chiller, the former is technically more efficient, and they also work quieter than the latter.

Water-cooled chillers are ideal for small- and enterprise-scale cooling.

There are also portable solutions for homes and areas with limited spaces.

What is a Portable Chiller Air Conditioner?

A portable chiller air conditioner system is a small, compact device used for cooling spaces.

Users may easily transport the device from one area to another, depending on where the need is.

Also referred to as packaged chillers, these devices function just like regular chillers but at a lower capacity.

What Is A Chiller AC System’s Capacity?

The cooling capacity of a conditioner refers to its ability to remove heat.

It is usually measured in kW or BTU/h and is computed by multiplying the mass rate by specific heat capacity and temperature change.

HVAC technical experts would know what cooling capacity a room needs by measuring it and considering all other factors, like insulation.

What Is Chiller Air Conditioner System Safety?

Chiller air conditioner systems have safety controls designed to protect the system from damage and prevent harm to its users.

The machine will trigger its own fail-safe system if it detects issues such as low refrigerant, high pressure, and low oil.

Be sure to read through the manual of your chiller to know what its safety features are.

What Causes a Chiller Air Conditioner System to Trip?

A air conditioner trips to protect itself, which is a part of its many safety features.

Oftentimes, a chiller air conditioning system trips because of low pressure.

Many factors may cause this, such as low refrigerant, broken power assembly, low water flow, clogged screen, dirty filters, and dirty tubes.

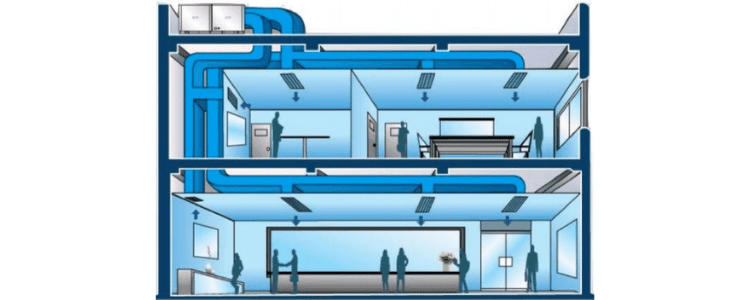

How Ac Chillers Work

How Ac Chillers Work

What is the Chiller Air Conditioner System Set Point?

The setpoint of chiller systems is usually at 50 degrees Fahrenheit or 10 degrees Celsius and higher.

However, there may be instances when the setpoint has to be configured lower than that.

If that is the case, users need to implement extra precautions to ensure that the unit won’t sustain possible damage.

How Do You Maintain A Chiller System?

There are many ways to maintain your chiller system.

The best thing to do is to keep its tubes, coils, and filters clean.

Treating the condenser water is also necessary to prevent scaling and corrosion.

What is the Ideal Temperature for a Chiller Air Conditioner System?

The ideal temperature for aair conditioner system is 95 degrees Fahrenheit or 35 degrees Celsius and lower.

This is the temperature that allows chillers to work effectively and efficiently.

Be sure to check your chiller for the right setting.

How Can I Improve My Chiller System Performance?

To improve the performance of your air conditioner, retrofit the machine so it can run at variable speeds.

You can also achieve better results and performance if there are multiple devices working together or complementing each other to cool the air.

Increasing supply temperatures may also help.

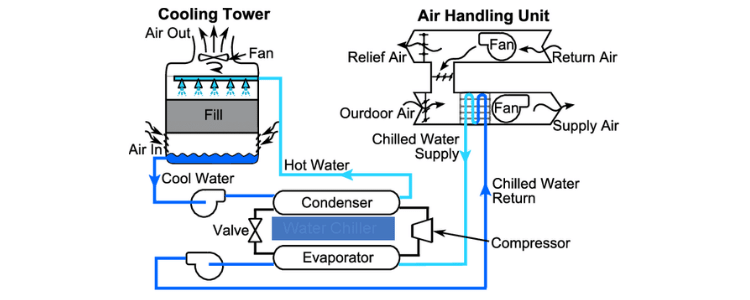

How Chiller Works With Diagram

What is the Head Pressure of a Chiller Conditioner System?

Head pressure is also known as discharge pressure.

It is the amount of pressure that the compressor produces to move the refrigerant.

A high pressure is very high coupled with low suction pressure restricts the flow of the refrigerant.

How Long Does a Chiller Air Conditioner System Last?

On average, a chiller air conditioning system may last for 12 to 15 years.

This lifespan may go down or up depending on a lot of other factors, such as maintenance and usage.

Hire a competent HVAC technician to do regular checks on your chiller to maximize its lifespan.

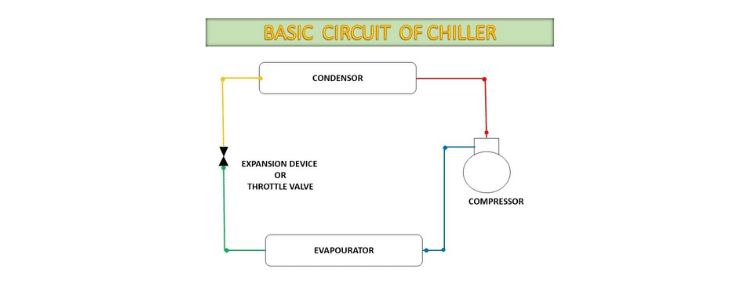

Chiller System Diagram

How Can You Reduce the Energy Consumption of a Conditioner System?

To reduce the energy consumption of your conditioner system, consider decreasing the condenser water temperature.

Lowering that by 5 degrees Fahrenheit will provide a savings of around 2.5 percent.

You can do this when the outdoor temperature decreases.

What is the Best Chiller System Efficiency?

An efficient air conditioner system produces great tonnage at low kilowatt usage.

This means that the chillers run at 70 to 75 percent load at the lowest ECWT or Entering Condenser Water Temperature.

The design of the chiller is a huge factor in its efficiency.

How is a Chiller Conditioner System Efficiency Calculated?

You may calculate the efficiency of a chiller air conditioner system by computing for its COP or Coefficient of Performance.

The Coefficient of Performance refers to the ratio of the refrigeration that the chiller generated against the energy it used to produce it.

The measurement used for COP is kW or Kilowatts.

How Much Power Does A Air Conditioner System Use?

A chiller consumes around 1,200 to 2,500 watts of power, depending on its size and capacity.

You then multiply that number by the number of hours the chiller is running.

That’s approximately the power the chiller uses regularly.

What Size of a Chiller Air Conditioner System Does One Need?

Generally, you will need a air conditioner system that works at 20 BTU for ever square foot of space.

However, there are other factors to consider, such as the height of the room and the size of the doors and windows.

Experts recommend adding more cooling power depending on the insulation of the room or structure.

What are the Advantages of Using a Chiller System?

Chiller air conditioning systems are highly recommended not just in homes but in buildings, offices, and industrial areas as well.

The main advantage of installing these devices is to protect appliances and equipment from overheating.

In addition to that, chillers work efficiently, thereby allowing users to save a lot of money due to reduced energy costs.

Chillers also provide a higher level of cooling liquid for the energy it consumes, which means they are highly recommended for big and small areas.

What are the Disadvantages of Using a Chiller System?

The performance of a air conditioner overshadows its disadvantages such as higher maintenance and complicated installation.

You need to hire expert technicians to install chiller ac as it comes with many parts and components that are not user serviceable.

It follows that it requires a higher level of maintenance because of these additional parts, which are mostly mechanical in nature.

What Gas Does a Air Conditioner System Use?

The most common type of refrigerant used in a chiller air conditioner system is ammonia.

Also called R717, ammonia is a halogen-free chemical with the highest rating when it comes to heat absorption.

This is what makes this gas ideal for use in regular and portable chiller units.

How Do You Maintain a Chiller Air Conditioner System?

To maintain a chiller ac system, make sure that it is regularly checked by an HVAC specialist.

The technicians, in turn, will lower the machine’s entering water temperature and make sure that the chilled water flows at a rate of 3 to 12 feet per second.

They will also check the refrigerant and keep it charged while preventing the inefficiencies that the non-condensable elements may cause.

How Often Should You Clean the Tubes of the Chiller?

Experts recommend that owners get their chiller tubes cleaned every three years at the very least.

If they are a part of the open system, then they need annual cleaning.

Periodic inspection is also mandatory.

How Do You Buy a Chiller Air Conditioner System?

Be sure to get a air conditioner system designed by a reputable manufacturer like Geson Chiller.

The performance and efficiency of the chiller system have a lot to do with its design.

An expert chiller manufacturer will help you make the right decision as to what kind of chiller you need for your specific needs.

Where are Chiller Systems Used?

There are various applications for air conditioner systems, such as in plastic manufacturing and chemical processing plants, pharmaceutical laboratories, and beverage processing factories.

People also use them in hospitals, computer data centers, and hotels.

Even homeowners may find good uses for a chiller air conditioning system.

Why purchase from Geson Chiller?

Geson Chiller is a reputable chiller manufacturer with over 15 years of experience in the field.

They offer a one-stop solution for all your chiller needs, providing you with nothing but products of the highest quality and safety rating.

Their headquarters is in Nanjing, China, and we serve customers from all over the globe.

What Kinds of Chillers are Available?

Geson manufactures different types of chillers and there’s one that suits your needs.

They come in capacities from 3 to 4,500 tons and a temperature rating of as low as negative 145 degrees Celsius or negative 229 degrees Fahrenheit.

The types of chillers available are water-cooled and air-cooled chillers, as well as scroll, screw, and centrifugal chillers.

Figure 3 Water Based Chiller Air Conditioner System

Figure 3. Water Based Chiller Air Conditioner System

How do you Choose a Chiller Air Conditioner System?

When buying a chiller conditionering system, consider your needs and specific applications first.

A chiller conditioner system may vary in size, type, and cost.

Once you have listed all your requirements, talk to a knowledgeable manufacturer like Geson Chiller to help you make the right decision.

How Can You Be Sure of Geson Chiller?

Geson Chiller offers all kinds of chiller system and can also customize one to suit the needs of customers.

Geson serves industrial, commercial, and residential clients from all over the world.

Geson chille systems also come with a service guarantee.

Contact Us Now
