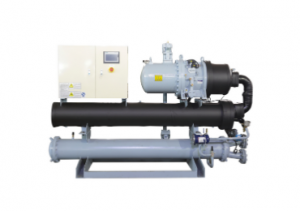

Geson Water cooled screw chiller 12/7℃
Geson water cooled screw chiller adopt the high efficiency screw compressors. It is high COP4.5 efficiency than other chillers, compact in structure, and lower failure operating.
Widely applied in the industry and commercial projects, is the most popular models water chiller.
Geson Water cooled screw chiller 12/7℃
Geson water cooled screw chiller adopts the high-efficiency screw compressors. It is high COP4.5 efficiency than other chillers, compact in structure, and lower failure operating.
Widely applied in the industry and commercial projects are the most popular models of water chiller.
Features:
- Cooling capacity ranges: 30~4500RT.
- Loading adjusted 100%, 75%, 50%, 25%,0.
- Available with R22/R134A/R407C/R410A and etc.
- Failure-free operation >=40000hours.
- Branded screw compressors, simple structure, few breakdowns.
- Schneider electric parts, SIEMENS PLC touch screen controller;
- Compact in structure, cover small area, save machine room space.
- Completely running tested before the delivery from the factory.
- Components: Screw Compressor, PLC controller, A.C contactor, Thermal overload relay, Heat exchanger, Filter, Expansion valve, and ect.
| Water-cooled Screw Chiller 12/7℃ | ||||
| No. | Item | Unit | 180kw | |
| 1 | Rated Cooling Capacity | KW | 180 | |
| 3 | Condenser | Condenser | Shell and tube type | |
| Condenser import and outlet diameter | DN | DN80 | ||
| Cooling water flow | m³/H | 39 | ||
| 4 | Evaporator | Evaporator | Shell and tube type | |
| Evaporator import and outlet diameter | DN | DN80 | ||
| 55% Glycol Water Flow | m³/H | 32 | ||
| 5 | Refrigerant | R22 | ||
| 6 | Power specification | 3P-380V-50HZ | ||
| 7 | Protection device | Phase lack protection, phase reversion protection, overload current protection, exhaust temperature protection, low&high pressure protection, low temerature protection. | ||
| 8 | Size | Length mm | MM | 2450 |
| Width mm | MM | 900 | ||
| Height mm | MM | 1580 | ||
| 9 | Weight | KG | 1270 | |
| 10 | Operating weight | KG | 1420 | |
Welcome to visit our water cooled screw chiller manufacturing base.
