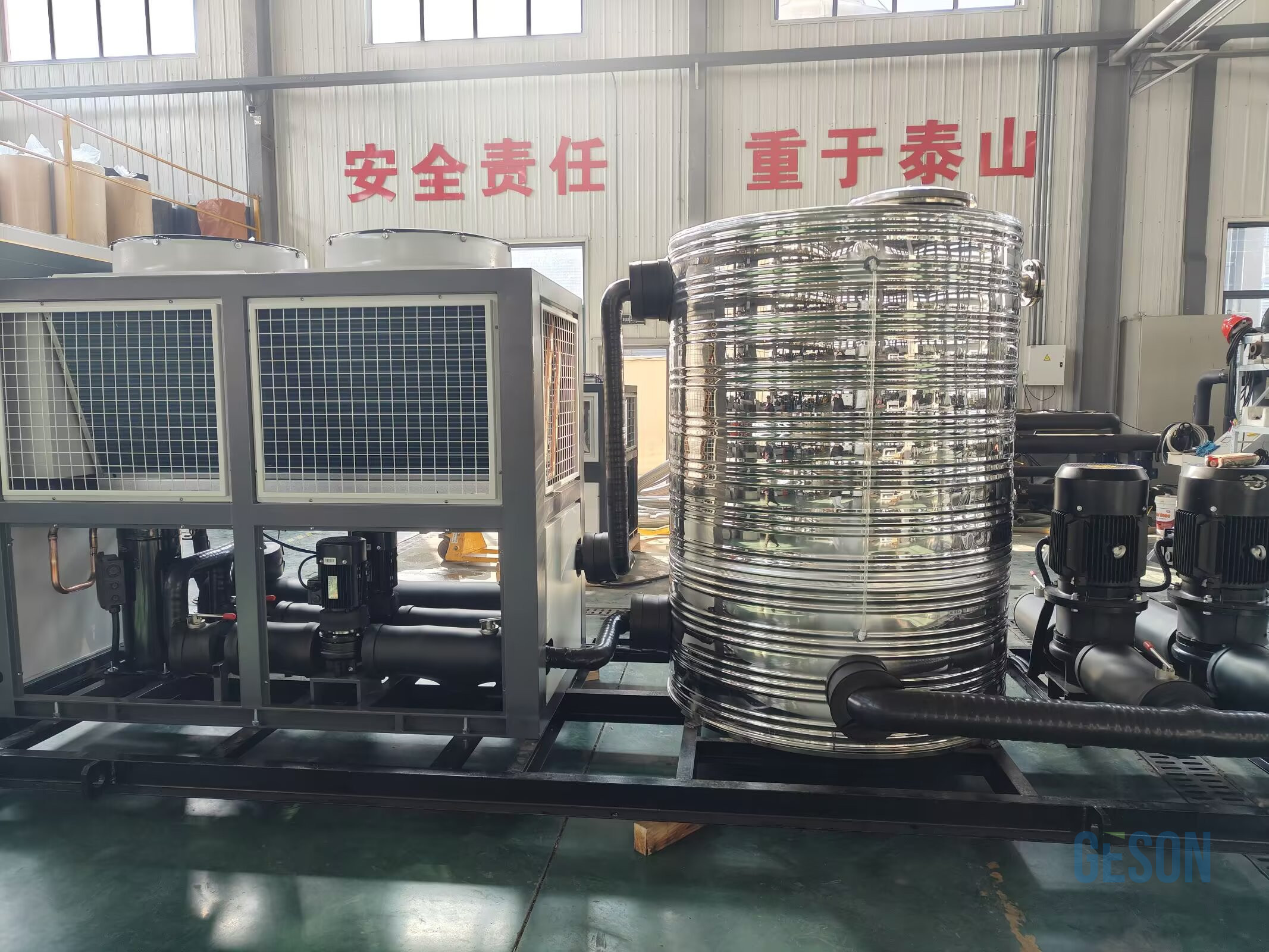

Injection Molding Chiller for Plastic Industry

2 ton Chiller to 100 tons Chiller,Precise Temperature Control, Packaged in Water Pump and Water Tank, Convenient to Maintenance

Why Choose Geson Injection Molding Chiller?

If you are finding the industrial injection molding chillers for your process system.

Geson water chiller for injection molding machine can meet all your varied of requirements.

Here, you will have the ultimate economical solution.

From the professionally experienced R&D team, you will satisfy the industrial water chiller system.

We can supply the following types of industrial water chiller:

Screw Chillers
Centrifugal Chillers
Rotary Screw Chillers
Scroll Chillers.

You can get the following services:
Customize chiller types, compressor types.
Precious chilled water temperatures.
The most suitable economical refrigerant.
The OEM brand for your brand.
Stable operation with 40000 hours failure-free.
Customize the voltage as your need.

Contact our engineer, to get the right solution for your industry.

Contact with Experts
Request For Catalogue

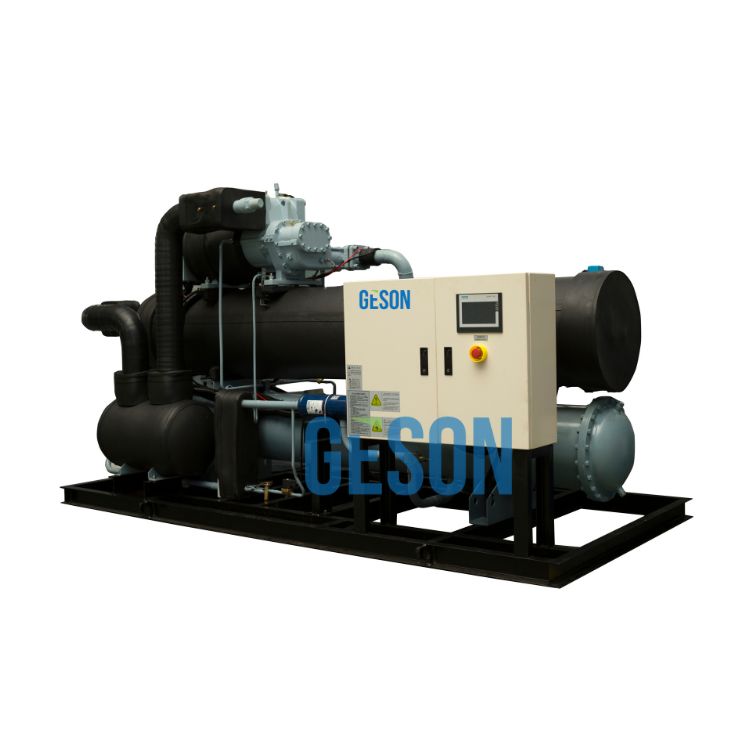

Injection Molding Chiller Water-cooled Screw Chiller 12/7℃
No. Item Unit 180kw
1 Rated Cooling Capacity KW 180
3 Condenser Condenser Shell and tube type
Condenser import and outlet diameter DN DN80
 Cooling water flow m³/H 39
4 Evaporator Evaporator Shell and tube type
Evaporator import and outlet diameter DN DN80
55% Glycol Water Flow m³/H 32
5 Refrigerant R22
6 Power specification 3P-380V-50HZ
8 Size Length mm MM 2450
Width mm MM 900
Height mm MM 1580
9 Weight KG 1270
10 Operating weight KG 1420

Selection method of rubber and plastic injection chiller:

General situation: Q=W*C*△T*S

Q = the required frozen water energy kcal/h

W=weight of plastic material KG/H

Example: W=31.3KG/H

C=Specific heat of plastic raw material kcal/KG℃

Example: Polyethylene PE C=0.55 kcal/KG℃

△T= is the temperature difference between the melting temperature and the product rubber mold, ℃ generally (200℃)

S= is the safety factor (take 1.35-2.0) generally take 2.0

Example: Q=W*C*△T*S=31.3*0.55*200*2.0=6886(kcal/h)

When choosing:

Injection Molding Chiller for PE

Injection Molding Chiller for PS

Injection Molding Chiller for NYLON

Injection Molding Chiller for PC

Injection Molding Chiller for PP

Injection Molding Chiller for ABS

Pls refer to the following datas:

Material Injection temperature Material Injection temperature Mold temperature Specific heat capacity kcal/KG℃
Polyethylene PE 160-310 0-70 0.55
Polystyrene PS 185-250 0-60 0.35
Nylon NYLON 230-300 25-70 0.58
Polycarbonate can PC 280-320 70-130 0.3
Polypropylene PP 200-280 0-80 0.48
ABS 180-260 40-80 0.4

Example: Q=W*C*△T*S=31.3*0.55*200*2.0=6886(kcal/h)

Kcal/h is the unit of refrigeration capacity,

1cal=4.178J

1J/s=1W

The amount of fuel consumed by the boiler per unit time is called fuel consumption.

The commonly used symbol “B” means,

The unit is:

The solid or liquid fuel is kilogram per hour (kg/h) kilogram per second (kg/s);

The gas fuel is m3/h (m3/h) or m3/s (m3/s).

portable chillers for injection molding

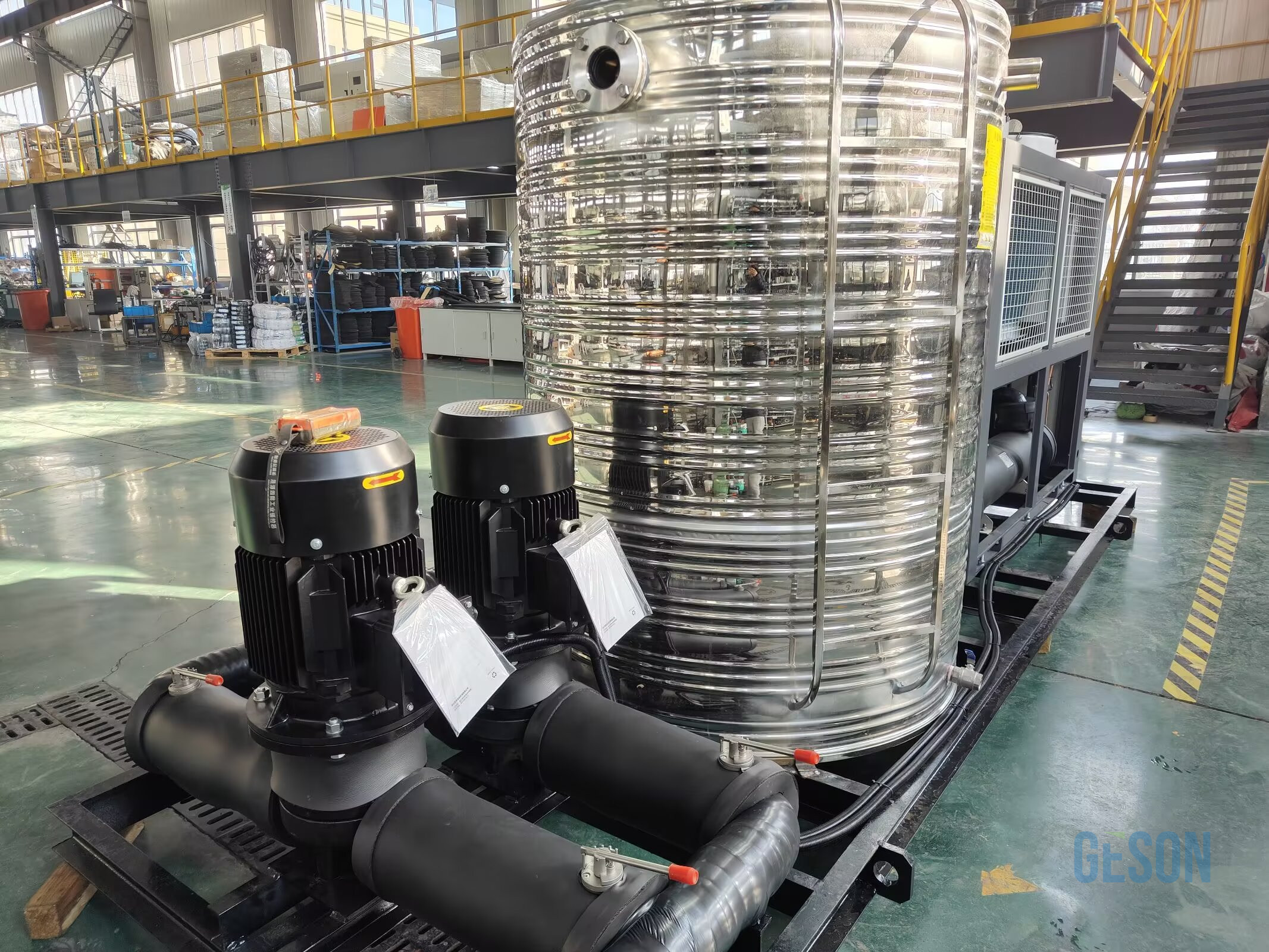

Portable Chillers for Injection Molding

  • 5RT-60RT Capacity
  • 5~25℃ Outlet Temperature
  • Package Design
  • No Need Cooling Tower
  • Easy to Installation

Chiller Plant For Injection Molding Machine

Chiller Plant For Injection Molding Machine

  • 20TR~570TR (70KW~2000KW)
  • -5C~20C Chilled water temperature
  • Semi-hermetic screw compressor
  • SIEMENS PLC controller
  • R22/R134A/R407C/R410A options

injection molding cooling systems

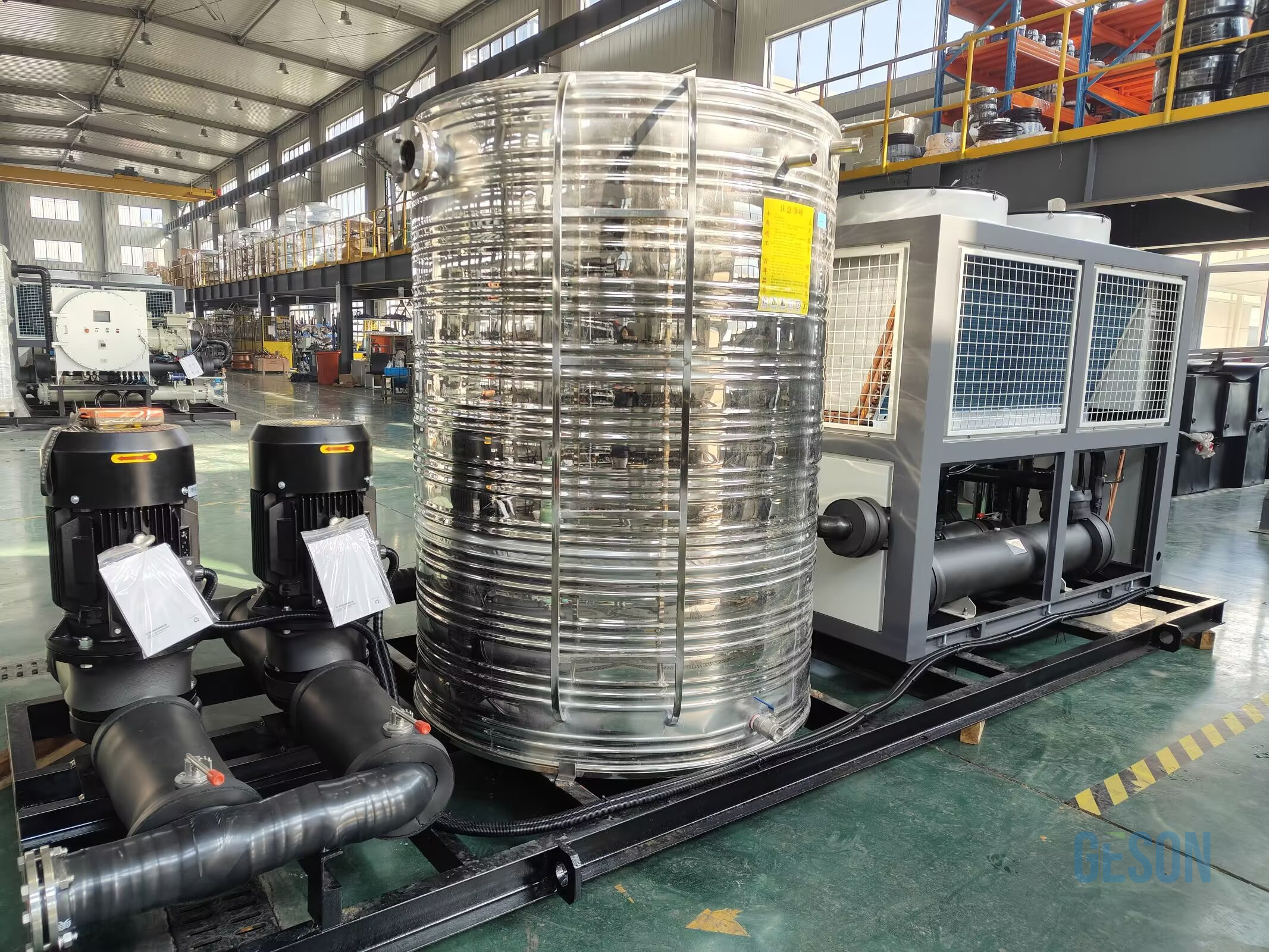

Injection Molding Cooling Systems

  • 1RT-80RT Capacity
  • 15℃ Outlet Temperature
  • Built-in Water Pump/Tank
  • No Need Cooling Tower
  • Easy to Maintenance

Top Brand Components
Ensure Your Top Quality Chiller

Top Quality Screw Compressor With Certificate

Adopts Famous Brand Compressor;
Semi-hermetic 5:6 Screw Compressor;
Compressor Energy Efficiency is 20%~30% Higher;
Available with R134A/R407C/R410A/R510A and etc.
40000 Hours of Trouble-free Operation
Screw Compressor has Approved ISO9001, CRAA、CE、PED、UL Certification;

Screw Compressor

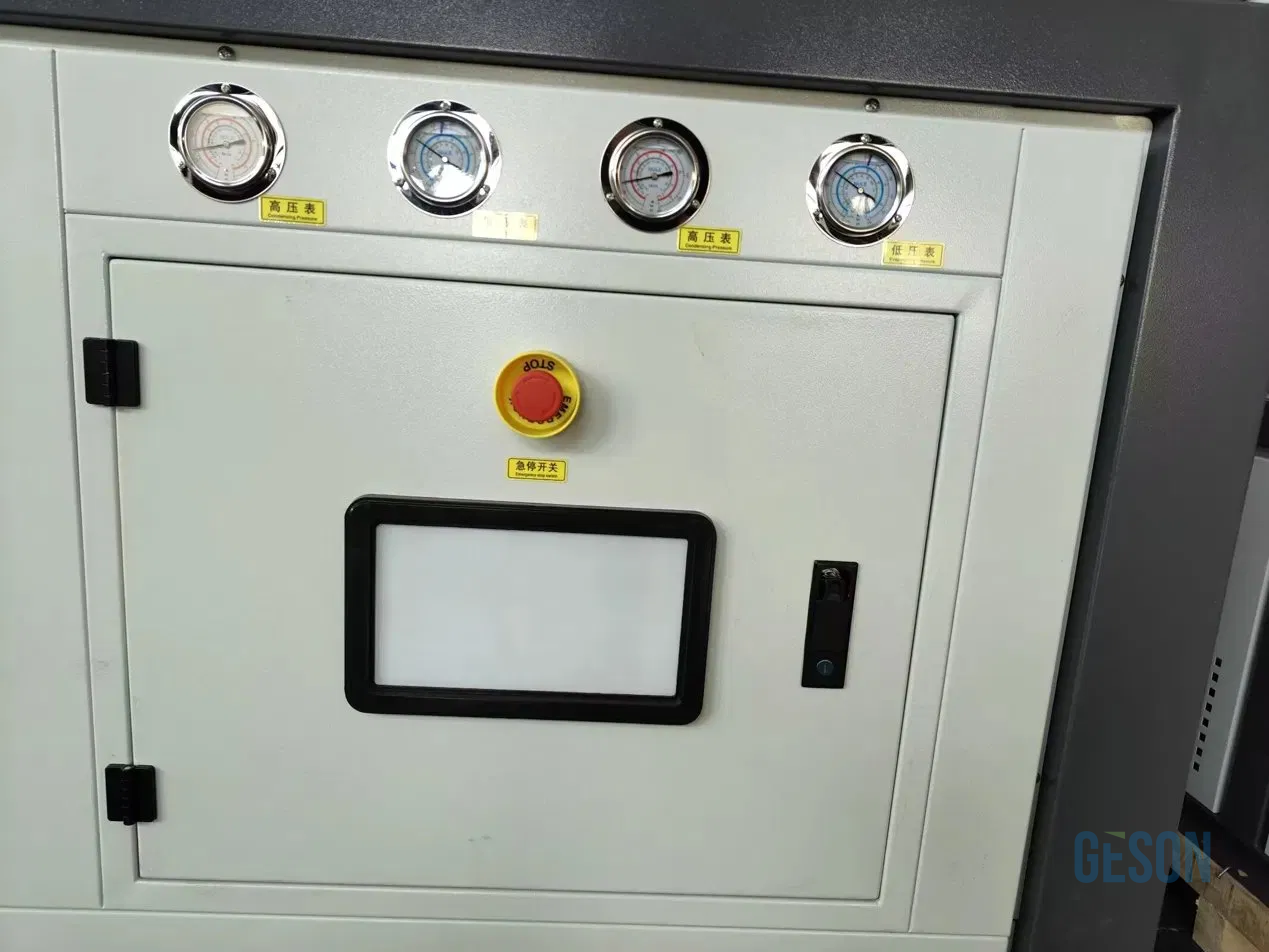

Reliable Microcomputer Control System
PLC Programmable Controller

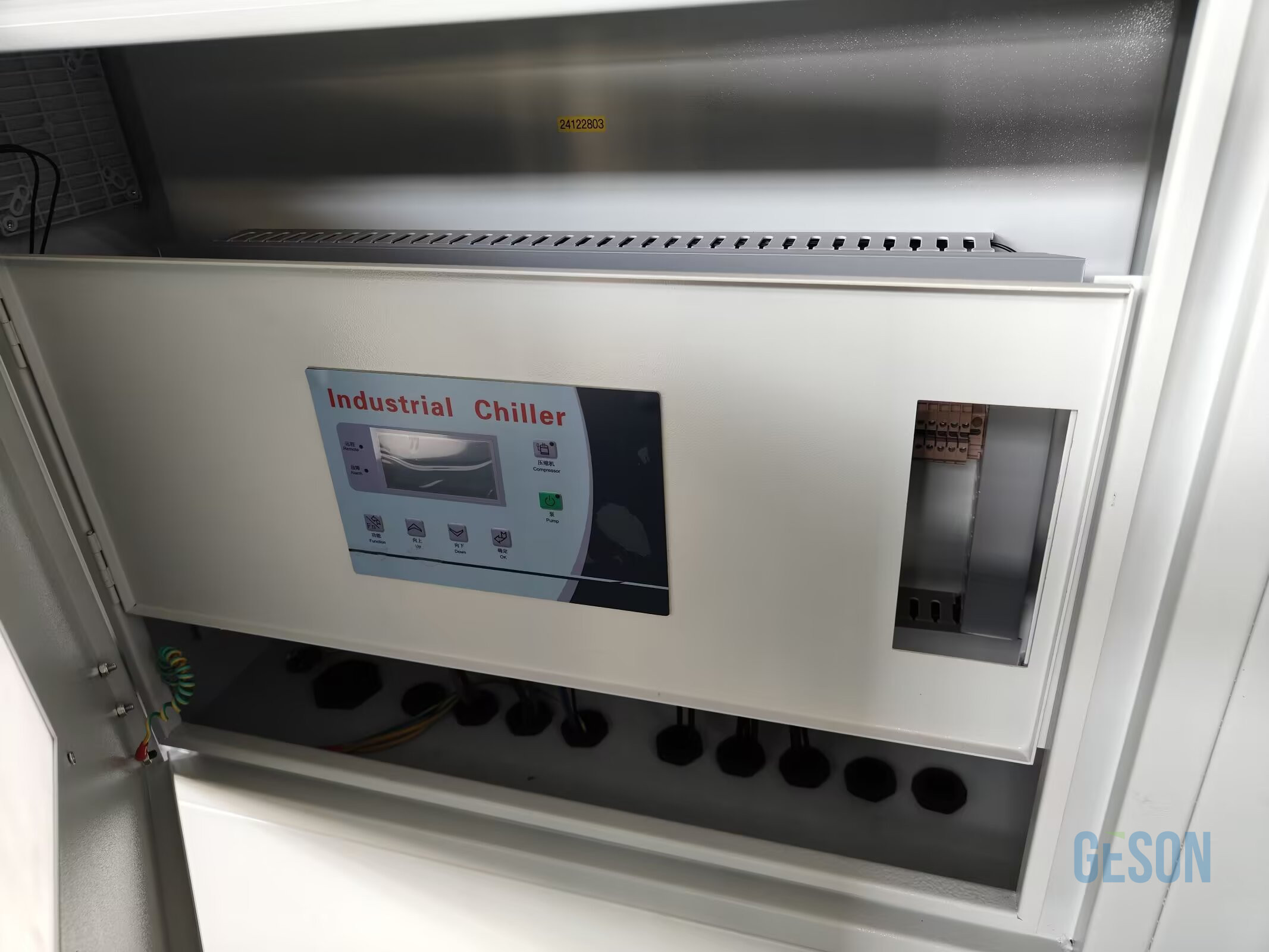

LCD Touch Controller
Automatic Detection of Cold Water Outlet Temperature;
Automatic Detection of Operating Conditions;
Automatically Record the Alarm and Send Trouble Alarm;
Can Realize Remote Control;
Reserve RS-485 Communication Interface, or Ethernet Port;
Customize Display Language: Chinese, English, Russian, Spanish;
PLC Programmable Controller
High-efficiency Shell and Tube Heat Exchanger
Low Maintenance Cost, Easy Operation;
Long Cleaning Cycle and Convenient Cleaning;
Fast Heat Exchange Speed;
High-Temperature Resistance 400℃;
High-Pressure Resistance 2.5Mpa;
Can be Used Under High Temperature and High Pressure
Adopts Copper Tube with Rolled Fins on the Outer Surface,
Which Has High Thermal Conductivity and Large Heat Exchange Area;
Long Service Life Up to More Than 20 Years;
Shell and Tube Heat Exchagner
Brand Refrigeration Components:
Famous Brand Expansion Valve;
Brand Filter Drier
Has Electronic Expansion Valve
Or Thermoexpension Valve
Ensure the Stable Operation of the Industrial Water Chiller Unit.
Expansion Valve
Top Quality Electrical Components:
Famous Brand A.C Contactor, Relay, Thermal Protector,
Brand Pressure Controller, Filter Drier to Ensure the Reliability of the Industrial Water Chiller Unit

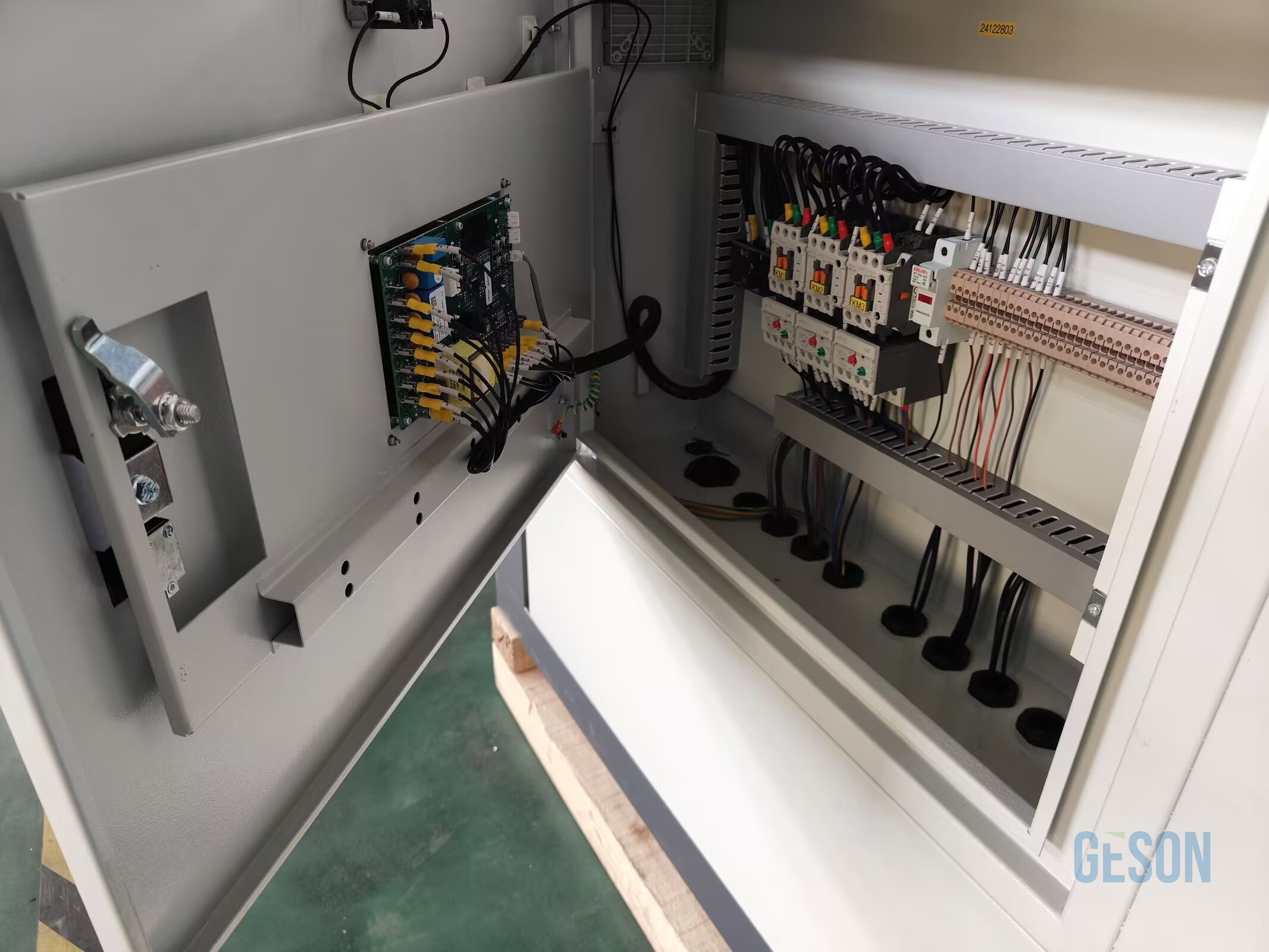

AC Contactor

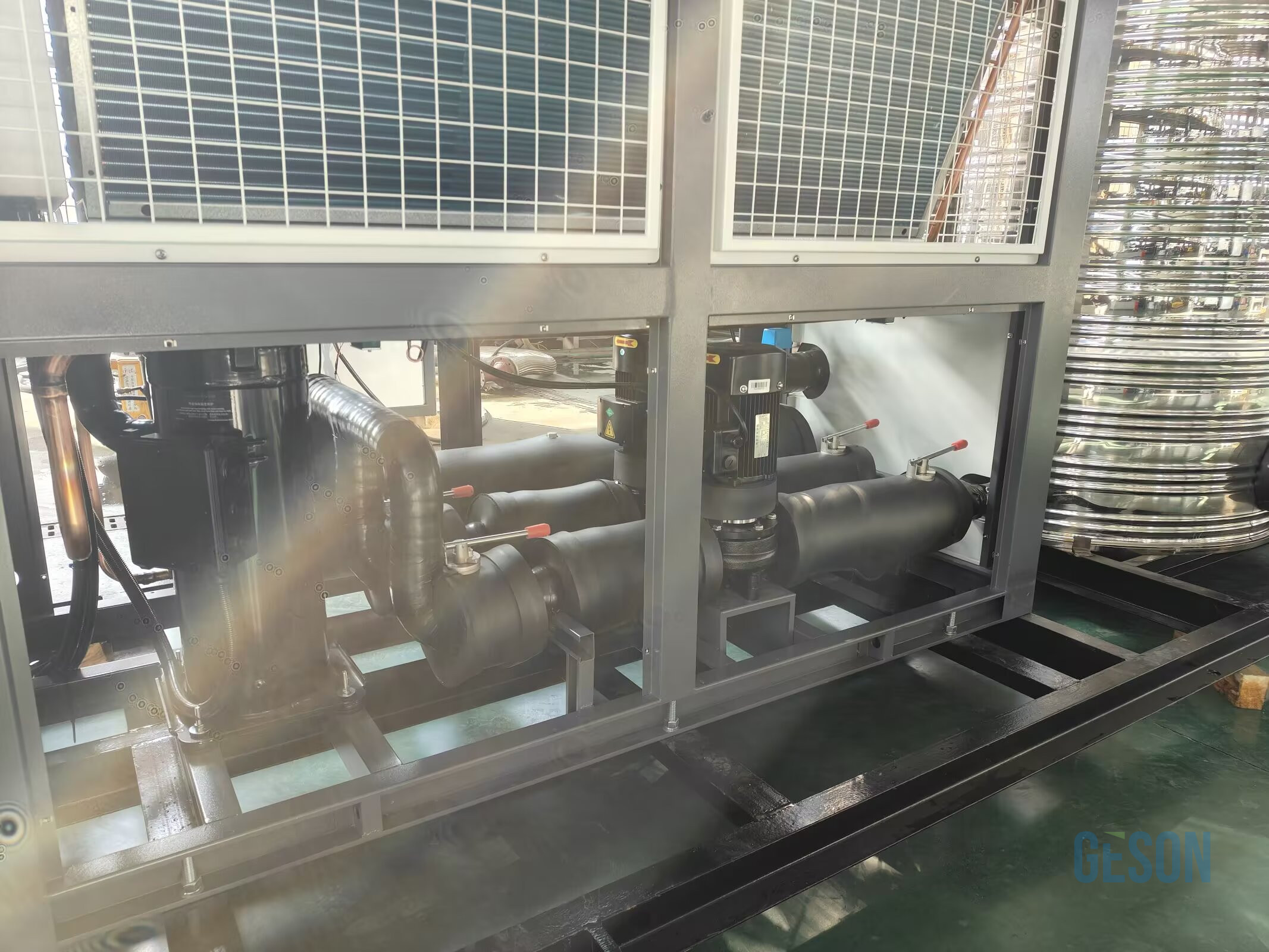

High-Efficiency Copper and Aluminum Fins Condenser:
Heat Transfer Performance is Good, Stable, Air Resistance is Small.
Enhance the Efficiency of the Heat Exchanging
High efficiency copper pipe and aluminum fins heat exchanger.

Injection Molding Chillers Manufacturer | Geson Chiller

This information will help you in getting the best Injection Molding Chiller.

Indeed, it identifies everything.

That you have been searching for.

Hence, it includes version, kind, advantages, price, and maintenance, among other important points.

So before you buy a Chiller Plant For Injection Molding machine, go through this guide.

Injection Molding Chillers

Injection Molding Chillers

The working principle of the injection molding chiller units:

After the plastic pellets are injected into the mold after heating and melting in the injection molding machine to condense, the mold is opened to eject the molded plastic workpiece.

In the continuous production process, the chilled water system of the chiller is required to cool the mold to shorten the plastic condensing time and improve the dimensional accuracy of the workpiece.

Molding quality and surface quality, this is the working principle of injection molding water chillers, injection molding water chillers generally use water-cooled box chillers.

If the chiller is applied to the cooling of molding molds of plastic processing machinery, it can greatly improve the surface finish of plastic products, reduce the surface marks and internal stress of plastic products, make the products do not shrink or deform, facilitate the demolding of plastic products, and accelerate product shaping.

Thereby greatly improving the production efficiency of the plastic molding machine;

Portable Chillers For Injection Molding

Portablechiller for injection molding

What is a Chiller?

A chiller is an appliance that eliminates heat from a fluid through different methods.

They include vapor-compression, adsorption refrigeration, or absorption refrigeration cycles.

Moreover, this fluid can then be transferred through a heat exchanger to cool processing equipment or another process stream. i.e., air or process water

 Chiller For Injection Molding Machine

Chiller For Injection Molding Machine

·       What are the components of a Chiller?

Following are the major components of a Chiller

  1. Compressor,
  2. Condenser,
  3. Evaporator,
  4. Expansion Valve,
  5. PowerPanel,
  6. Control unit,
  7. WaterBox,

chiller system basics

Chiller system basics

·       What is the principle of an Injection Molding Chiller?

A chiller performs on the principle of vapor-compression or vapor absorption closed loop.

Thus, the heat transfer takes place, the refrigerant evaporates, changing from a low-pressure fluid into a vapor.

While the Injection Molding Water Temperature of the process coolant decreases.

The refrigerant then moves to a compressor, which executes multiple functions.

·       What are the kinds of a Chiller?

        There are two kinds of a Chiller.

        They are:

  • Compression Chillers
  • Absorption Chillers

Air Cooled Chiller Diagram

Air Cooled Chiller Diagram

  What is drooling in Water Cooling System For Injection Molding?

When nozzles are pushed away from the mold after injection, molding has been processed out.

 Thus, the drizzle of plastic from the sprue gate occurs.

Hence, this drizzle of plastic is usually called drooling.

Moreover, it is caused by residual pressure stored in the sprue and runner.

Water Chiller For Injection Molding Machine

Water Chiller For Injection Molding Machine

How to do the water treatment in the plastic injection molding system?

When the efficiency of the chiller cooing is low, it is possible because of the scale formation.

You need to do the water treatment for the plastic injection molding chiller.

·       Can ABS be injection molded?

ABS is a thermoplastic matter.

Thus, it is known for its high impact resistance and rigidity.

Furthermore, it has good resistance to scratching and toughness with excellent dimensional reliability.

However, due to these thermoplastic features, ABS is easily plastic injection molded.

Chiller Plant

Chiller Plant

General Plastic Manufacturing Mold Cooling

General Plastic Manufacturing Mold Cooling

Mold Chiller

Mold Chiller

·       What is the switchover position in an Injection Molding Chiller?

The switchover position is the ram position where the injection position switches to the packing part.

However, the cushion length is the distance from the switchover position to the farthest place that the end of the screw can reach.

·       What is mold temperature in Injection Molding?

For injection-molding processing of PTT melt, and Injection Molding Water Temperature Control,  recommend being between 232–260°C and 88–121°C, respectively.

·       What is tonnage in an Injection Molding Chiller?

The “tonnage” is the calculation of energy needed to keep the tool closed during the injection.

Thus, this energy is the main component in determining the injection molding appliance size needed for producing the equipment.

·       How do you calculate tonnage in Plastic Injection Molding Chillers?

The foremost step in calculating accurate clamp tonnage is to measure the surface area of the part.

However, this means achieving the space’s square inch area by multiplying the length by the width.

Moreover, if it is a multi-space mold?

Then, multiply the number by the number of cavities.

·

·       How do you modulate air bubbles in an Injection Molding Machine?

In contrast, use a heat gun or something familiar.

Then as you gently heat the area of the component where the bubble is formed.

Thus, the state of the bubble should change.

So, if it is a gas bubble?

The gas will heat up and expand.

Moreover, it raises the surface and often will pop as the part surface gets smooths.

How To Calculate Btu/hr For Chiller?

How to convert the hp and btu of the chiller? The conversion relationship of the cooling capacity unit is as follows:

1 kcal/h (kcal/hour) = 1.163W, 1 W = 0.8598 kcal/h;

1 Btu/h (British thermal unit/hour) = 0.2931W, 1 W = 3.412 Btu/h;

1 USRT (United States cold tons) = 3.517 kW, 1 kW = 0.28434 USRT;

1 kcal/h = 3.968 Btu/h, 1 Btu/h = 0.252 kcal/h;

1 USRT = 3024 kcal/h, 10000 kcal/h = 3.3069 USRT;

1 horse = 2.5 kW (for air-cooled units), 1 horse = 3 kW (for water-cooled units)

Description:

When “hp” is used as a power unit, it is expressed by Hp (imperial horses) or Ps (metric horses), also known as “horsepower”, 1 Hp (imperial horses) = 0.7457 kW, 1 Ps (metric horses) = 0.735 kW;

·       How do you set specifications of an Injection Molding Chiller?

  • Set injection velocity from slow
  • Fixed screw revolving velocity from low
  • Set mold open/close velocity slowly at first
  • Set injection proportion from a short position.
  • Set prolonged pressure holding time of injection molding appliance at first
  • Set a long cooling time at first.
Figure 1 Injection Molding Chiller

Figure 1 Injection Molding Chiller

·       How do you calculate clamping force in an Injection Molding Machine?

Clamping force is often calculated in the following ways:

  1. Empirical FormulaClamping force (T) = clamping force constant Kp * product projected area S (CM * CM).
  2. Empirical Formula 350bar*S(cm^2)/1000.
  3. It is calculated using CAE software.

·       What are the disadvantages of an Injection Molding?

Disadvantages of an Injection Molding are:

  • High tooling expenses and long set up lead times:

 Up-front expenses are high due to the style, assessing, and tooling needed.

Firstly, there is the initial creation and prototyping.

Then the design of a prototype mold tool to produce copies of the component in proportion.

Lastly, and only after massive testing during both steps, you can finally get injection mold a component.

  • Part design limitations:

Components must be created with injection molding consideration and must follow the fundamentals of injection molding.

For instance:

  • Prevent undercuts and sharp borders as much as possible
  • Use regular wall thicknesses to avoid inconsistencies in the cooling process resulting in issues like sink marks.
  • Draft angles are recommended for better de-molding.
  • Small runs of components can be expensive:

 Due to the intricacy of equipment, and the need to rid the appliance of all previous material before the next product can be produced, the setup time can be too long.

Therefore small runs of parts have typically always been thought of as too costly to injection mold.

·       Why is hydraulics used in an Injection Molding Chiller?

Injection Molding Chillers have a hydraulic mechanism.

Thus, that must give reliable execution through many years of constant, around-the-clock production cycling.

Moreover, there is also a requirement for energy control sub-circuits.

Thus, to keep the nozzle against the sprue of the mold and to keep the mold closed.

·       What polymers are used in an Injection Molding Machine?

Generally, plastic injection molders use thermoplastics.

However, regular polymers used by molders are:

  • Acrylonitrile Butadiene Styrene (ABS),
  • Polyethylene,
  • Polycarbonate,
  • Polyamide
  • Polypropylene.

·

What Are Portable Chillers For Injection Molding?

Plastic Chiller For Injection Mold Cooling

Plastic Chiller For Injection Mold Cooling

The use of a chiller for injection molding machines is one of the technological breakthroughs in the plastic manufacturing industry. It is crucial to be able to mass-produce the components of plastic furniture.

In order to succeed with this manufacturing process, it requires precision and accuracy. Speed is also important.

The cooling process with the help of a small portable chiller is crucial. In fact, experts believe that the use of water cooling system for injection molding makes up 80% of the molding process.

The use of an efficient portable air chiller can significantly reduce the amount of time spent for each batch. It is important to evaluate your cooling needs so you can invest in the right system.

How Do You Choose Chillers For Injection Molding?

The process of cooling molten plastic is straightforward and easy to comprehend. However, it has many variables.

The main objective for choosing portable water chillers industrial use is to find the right fit for the job. Different sized jobs have different cooling requirements.

There are 1 ton chiller, 2 ton chiller, 3 ton water chiller, 10 ton chiller, 20 ton chiller, 50 ton chiller, 60 ton chiller, 100 ton chiller, 200 ton chiller, 500 ton chiller.

You can maximize your time by choosing the right portable chillers for injection molding.

The most important factors to consider when choosing which portable air chiller to invest in are: melting point, heat distortion temperature (HDT), desired mold temperature, cooling power, and the availability of space.

portable chiller unit

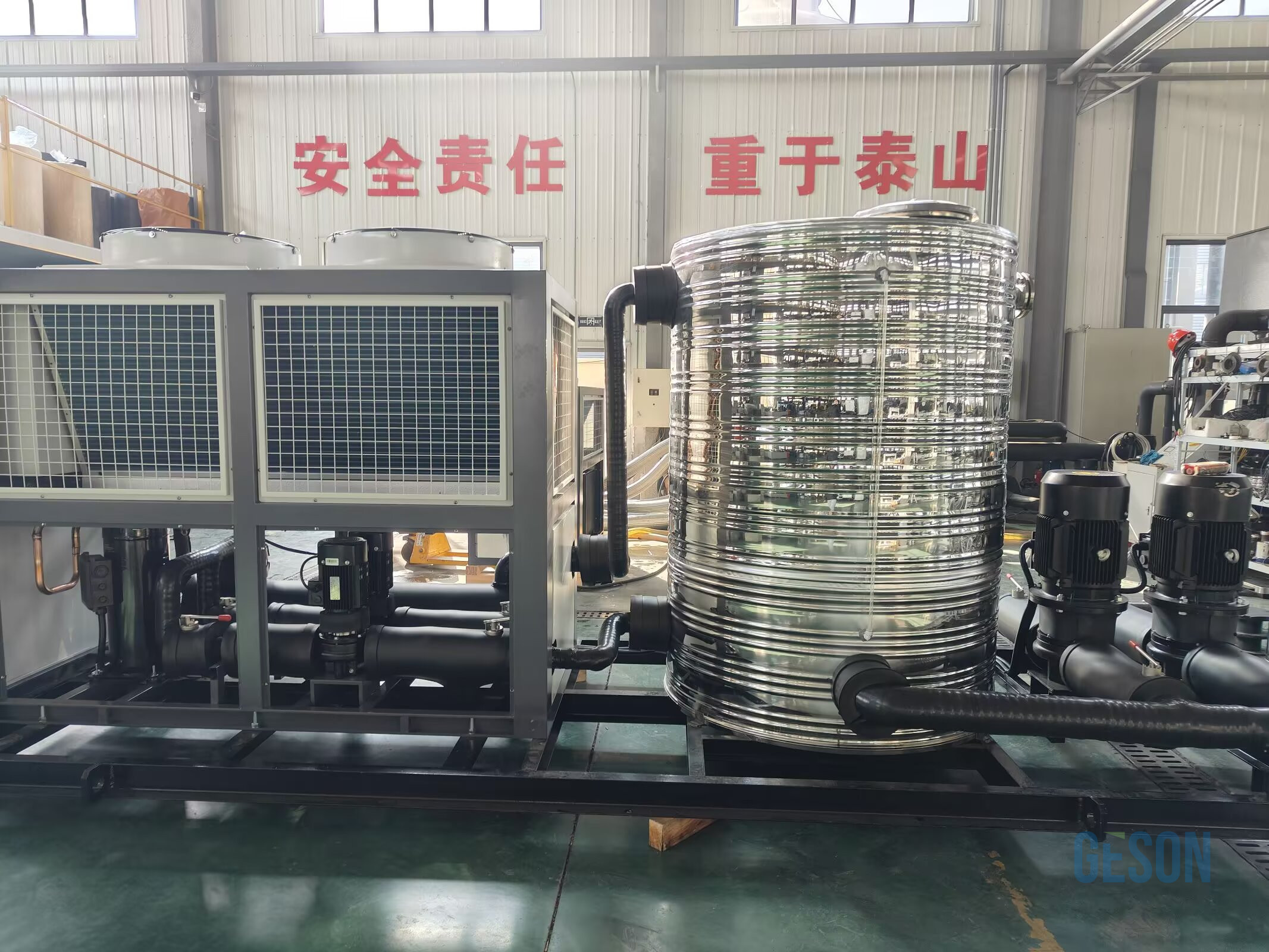

Portable Chiller Unit

Why Is Melting Point Important When Selecting Water Chiller For Injection Molding Machine?

The melting point of the plastic is an important factor to consider when choosing water mold cooling system for injection molding.

You need to understand that there are different melting points for every type of plastic. The first step is, therefore, to know what type of plastic you are working with.

It is something that you need to evaluate prior to starting the cooling process. To give you an idea, it is important to look at the types of plastic and their corresponding melting points.

Polypropylene is one of the most common types of plastic mold chillers in the market. It has a melting point of 160 degrees Celsius.

Low-density polyethylene is another common type of plastic for injection molding. It has a very high melting point that can go up to 240 degrees Celsius.

Next is the high density polyethylene plastic with a melting point of up to 270 degrees Celsius.

Polycarbonate is the type of plastic with the highest melting point at 287 degrees Celsius.

It is also important to note that the melting point of plastic might vary from one manufacturer to another. Before you handle with these plastic materials, it is important to consult the manufacturer first.

Aside from knowing the heating needs of the plastic, you need to know about your goal temperature so you can decide the right portable chillers for injection molding.

Why Do You Need To Know The Heat Distortion Temperature?

The heat distortion temperature is another factor that must be taken into account when choosing air cooled portable chiller.

You need to research on the HDT range for your plastic to help you choose the right small portable chiller for the job.

Ideally, you need to chill plastic components before they reach the HDT range. If not, then the plastic components could easily deform once you take it out of the injection mold.

There are many factors within the plastic components themselves that would determine the HDT such as the composition of the plastic itself, pressure in the mold, and the molten density.

You need to talk with the plastic manufacturer so you can get the exact gauge on this and choose the right portable chillers for injection molding.

Chiller For Injection Molding

Chiller For Injection Molding

What Is The Importance Of Your Goal Temperature?

To help you decide on the best water cooling system for injection molding, you need to know the desired temperature for heating.

There is more to plastic chilling than just blasting your plastic components with cooling as soon as possible. You need to be able to optimize your temperature targets in the most efficient manner possible.

Again, you must refer to the plastic manufacturer,  to learn the ideal heating and cooling temperature for the components.

This information is vital in putting together a chiller plant for injection molding machine or buying portable chillers for injection molding.

Knowing your temperature target will enable you to select the right mold temperature so you can select your portable air chiller accordingly.

By knowing and achieving the ideal mold temperature, you can match that with the injecting molding chillers that can deliver such cooling capacity.

As a result, the plastic can cool and crystallize efficiently once it is molded. This will prevent cracking, seeping plastic, deformities, cavity formation, and other defects with the injection molding process chiller.

What Is The Cooling Power For In Injection Molding Chillers?

There are several different sizes and cooling capacities available with portable chillers for injection molding. They are often measured out in “tons”.

You need to look at the “tons” when comparing chiller sizes for injection molding with plastic. It does not refer to the actual weight of the industrial chiller units.

Instead, tons indicate the horsepower of the portable water chillers industrial molding. It refers to the refrigeration capacity of the unit.

For example, 1 ton of cooling power can deliver safe ejection temperature for 35 lbs per hour for polypropylene plastic or 65 lbs per hour for polycarbonate plastic.

As a general rule, 1 ton of cooling power should be enough to cool and complete the molding process for most types of plastic. It is something to consider when shopping around for portable chillers for injection molding.

How Much Space Is Available?

Just as there are different sizes of injection molding chillers, they also differ in terms of actual size.

The injection molding equipment is bulky. It can take up a lot of floor space in the factory. This is something to think about when choosing portable air chiller systems.

You need to know how much space is available for injection molding so that you can size the chiller accordingly.

Water cooling system for injection molding take up more space than air cooled portable chiller. This is because the former will require the use of cooling towers.

It is also the reason why a portable air chiller makes most sense in this application. Since it is not fixed into position, you can free up the space once you are done with injection molding.

chiller package unit small space

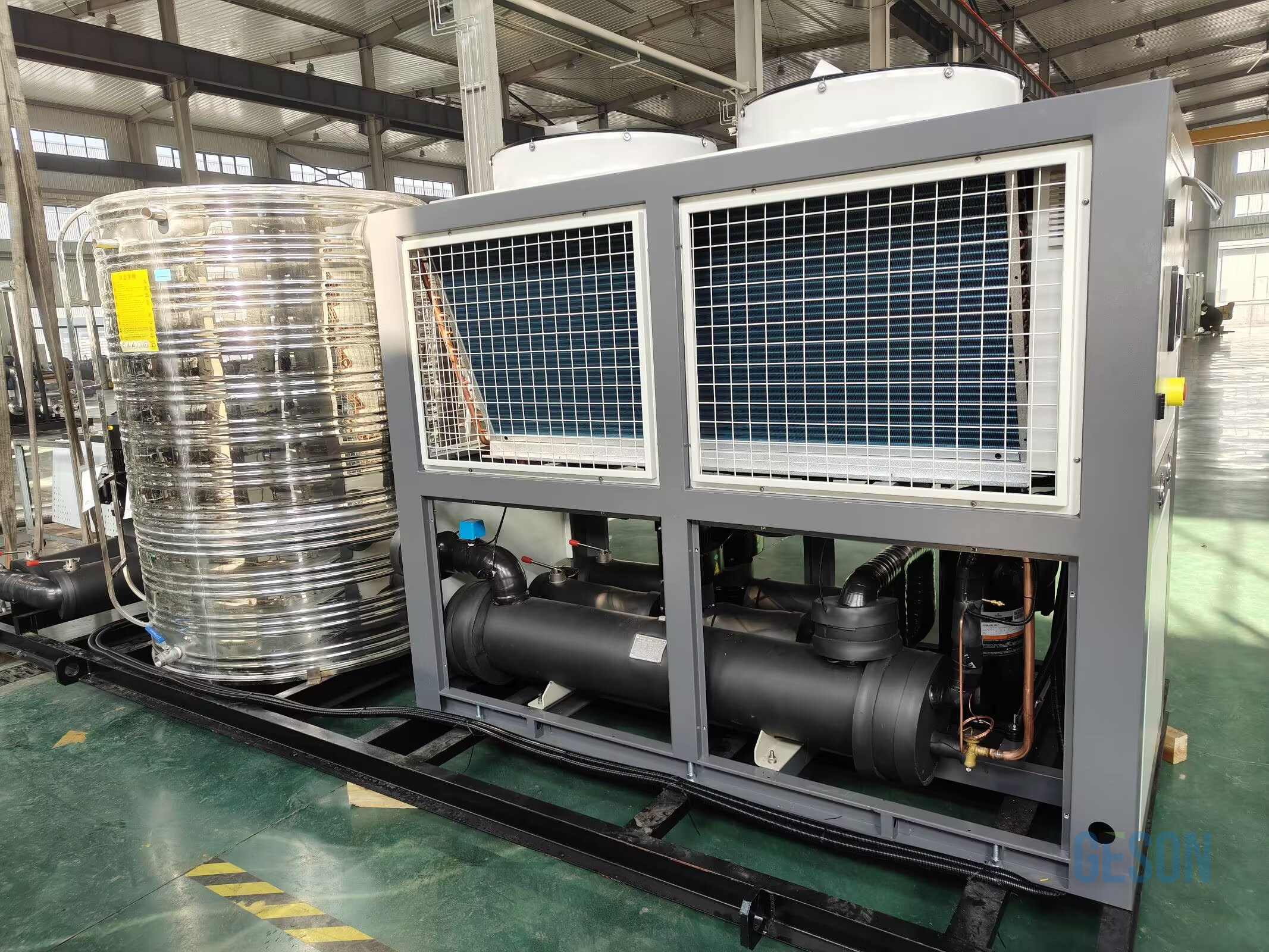

Chiller Package Unit Small Space

What Else Require Cooling During Injection Molding?

Relying on portable chillers for injection molding has its own benefits that will facilitate ease of plastic manufacturing.

There are also certain limitations to the cooling capacity of a portable air chiller. It might not be enough to provide the cooling you need.

You need to keep in mind that during the plastic processing, the injection molding equipment is not the only one that will require chilled water cooling. There will be other equipment that will be in use that will generate heat in the water loop.

During injection molding, refer to the temperature to the process,  the following equipment must be cooled as well: hydraulic motor, feed throat, thermometer, dryer aftercooler, and hot runners.

It is important to determine how much the equipment would heat up during injection molding. This will enable you to choose the best chiller plant for injection molding machine and other equipment.

Chiller Plant

Chiller Plant

Why Must Injecting Molding Chillers Be Portable?

Portable chillers for injection molding are the primary choice of equipment for this particular process.

This type of industrial chiller units offers flexibility with its use. It is also practical when you have limited floor space available in your manufacturing plant.

What Features Do You Look For In Portable Chillers For Injection Molding Process Cooling?

General Plastic Manufacturing Mold Cooling

General Plastic Manufacturing Mold Cooling

The best way to choose the best portable chillers for injection molding is to look at the features you need.

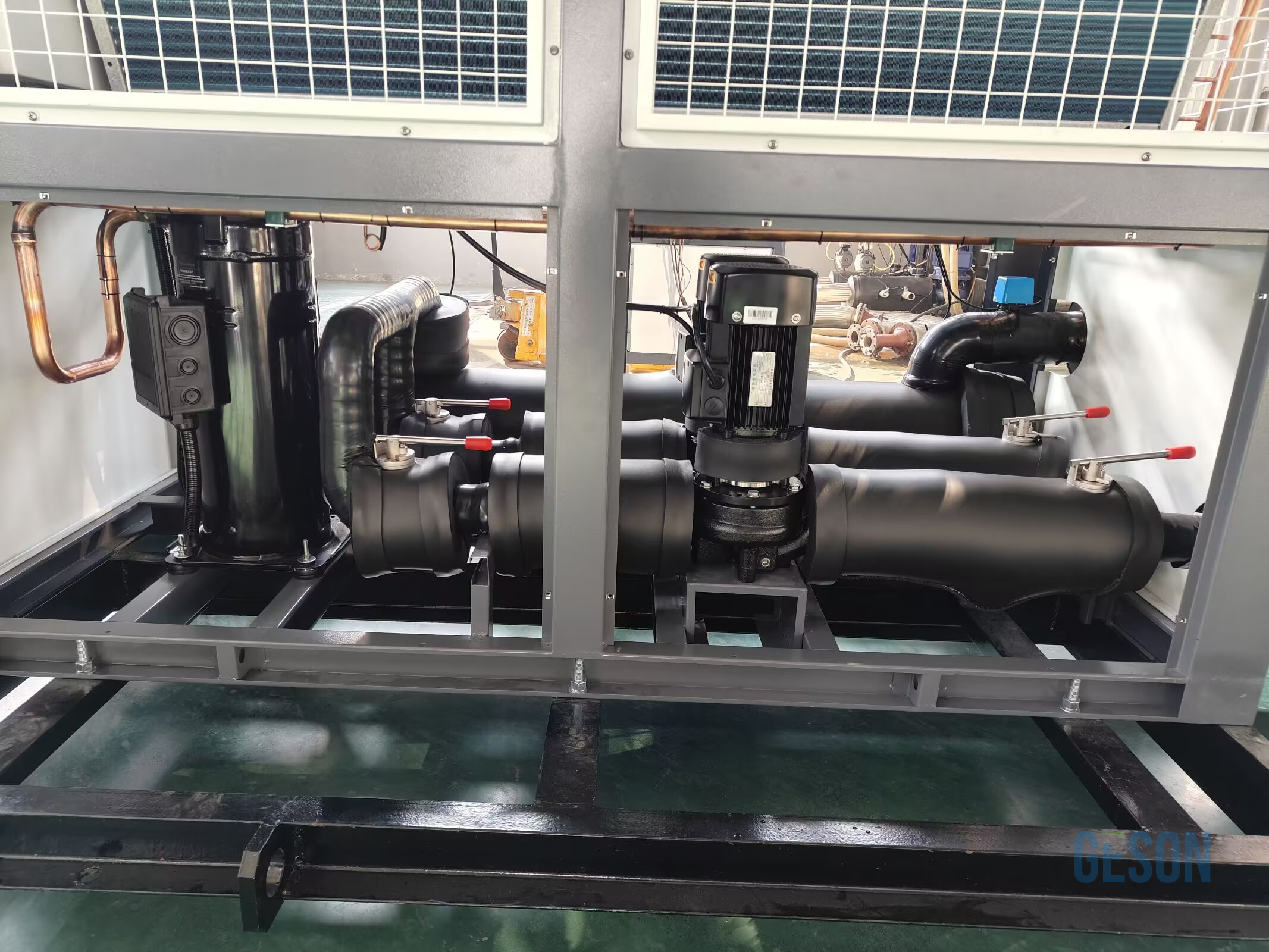

Make sure that the small portable chiller you buy has the following features: quiet compressor, Screw compressor, scroll compressor, recirculation, efficient cooling fluids, precise temperature controls, customization, and flexible temperature ranges.

screw compressor

Screw Compressor

A quiet compressor is a must when choosing the best portable chillers for injection molding. This is important so you can reduce the noise within the plastic molding facility.

If you are looking for injection molding chillers with a quiet compressor, make sure to avoid reciprocating compressors. They are the loudest to operate when compared to other types of compressors.

injection molding chillers

Injection Molding Chillers

It is also important to purchase a recirculating chiller for injection molding. This will enable you to make use of the resources again rather than putting it to waste. A good example of it is recirculating water for the chiller system that can significantly reduce your energy bills.

Scroll Compressor

Scroll Compressor

The ability to precisely control temperature is another important factor to consider when buying portable chillers for injection molding.

It goes without saying that getting your temperature right is vital to the success of injection molding in plastic. You will be able to be efficient with plastic molding if you control the temperature correctly.

The efficiency of the cooling fluids for water or air-cooled portable chiller is also important. The best cooling fluids for this purpose, are those with water and glycerol since they facilitate in effectively removing waste heat.

Chiller System Basics

Chiller System Basics

Flexible temperature ranges is also an important consideration when buying chiller for injection molding machine. There are several areas that plastic molding can go wrong. However, these variables are highly dependent on the temperature.

The ability to control the temperature during the plastic cooling process is important. This will enable you to achieve the optimum cooling requirement based on the plastic selection.

Finally, you want a water chiller for injection molding machine that can be easily customized. Each injection molding job is unique. Make sure you can tweak the controls and the function of the chiller to suit your needs.

Industrial Water Chiller

Industrial Water Chiller

What Are The Benefits Of Plastic Cooling With Injection Molding Chillers?

The use of cooling technology is definitely a game-changer when it comes to the plastics manufacturing industry.

This innovation has brought about many benefits in terms of how plastic products are manufactured.

First off, it has helped reduce cooling times so that it can speed up the manufacturing process. With less cooling time, it means you can mold more plastic in the same amount of time.

Water Cooling Tower

Water Cooling Tower

It can also deliver better quality for your molded components. By efficiently cooling the plastic, you can reduce the possibility of having defects on the plastic material once you take it out of the mold.

The final advantage of using portable chillers for injection molding is the reduced costs and higher efficiency. There will be less waste and the processes can be accomplished using a shorter amount of time.

Is Water Or Air Chilled Cooler Better For Injection Molding?

There are two systems to choose from when it comes to choosing a chiller plant for injection molding machine: water- or air-cooled chiller.

The decision on which of the two systems to buy will depend on your own needs as there will be certain benefits and drawbacks for each system.

Air Cooled Chiller Diagram

Air Cooled Chiller Diagram

The water-cooled chiller is the more cost-efficient of the two. While the air-cooled chiller costs less to initial setup, the water-cooled chiller will offer more savings in the long run.

It is also important to note that water-cooled chillers will require the installation of a cooling tower. Take this additional cost to mind when choosing what chiller system to use for plastic injection molding.

Air Chilled Cooler

Air Chilled Cooler

Contact us to more information.

Send Your Inquiry Today

Contact Us Now

    All Types of Industrial Water Chiller Products

    Modular Air Chiller

    Modular Air Chiller

    Air Source Heat Pump

    Air Source Heat Pump

    Water Source Heat Pump

    Water Source Heat Pump

    Water Tower

    Water Cooling Tower

    Chiller AC

    Air Coditioning Chiller
