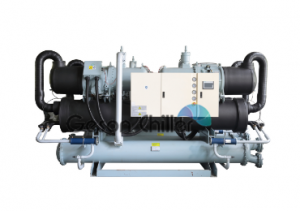

GSWL Series Water Screw Chiller -45

GSWL Series Water Screw Chiller -45

Geson GSWL Series Water Screw Chiller offer the chilled water temperature -45~5℃。

Mostly applied chemical reaction and process cooling, food processing industries.

If you are searching for low temperature water chiller, contact us for the right design.

Send Inquiry

GSWL Series Water Screw Chiller adopts the screw compressors.

This series chiller has these advantages:

  • Double, or Four compressors
  • 100~400 Ton cooling capacity.
  • Stable outlet temperature, and can achieve -45℃.
  • SIEMENS PLC controller.
  • 40% higher efficiency with high COP4.
  • Customize for the customer’s requirement
    No. Item  Unit 372kw
    1 Rated Cooling Capacity KW 372
    2 Compressor Compressor type Semi-closed 5:6 asymmetric twin-screw compressor
    Capacity control % 0~100%
    3 Condenser Condenser Shell and tube type
    Condenser import and outlet diameter DN DN150
    Cooling water flow m³/H 120.2
    4 Evaporator Evaporator Shell and tube type
    Evaporator import and outlet diameter “ 80
    30% Glycol Chilled Water Flow m³/H 72
    5 Refrigerant R404a
    6 Power specification 3P-415V-50HZ
    7 Protection device Phase lack protection, phase reversion protection, overload current protection, exhaust temperature protection, low&high pressure protection, low temperature protection.
    8 Size Length mm MM 3720
    Width mm MM 1100
    Height mm MM 1960
    9 Weight KG 3300

If you have some inquiries, contact us for a quick response.
