Project Description

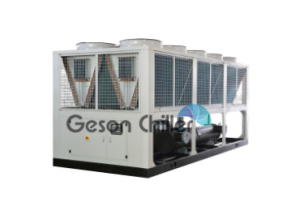

GSAL Air Cooled Screw Chiller -5℃

GSAL Air Cooled Screw Chiller -5℃

Geson GSAL Air Cooled Screw Chiller is the low-temperature air chiller.

Use the brand famous screw type compressors.

Can customize the cooling capacity, temperature.

Mostly applied on the plastic molding, PPC, PVC manufacturing, beverage food industry, chemical processing.

send inquiry

Features:

  • 50~400ton cooling capacity.
  • -5℃ chilled water temperature supply.
  • Loading adjusted 100%, 75%, 50%, 25%,0
  • Branded screw compressors, simple structure, few breakdowns.
  • Polywood case package, protect the water chiller in the delivery.
  • High-efficiency copper and aluminum fins condenser.
  • High-efficiency shell and tube evaporator.
 No. Item Unit 225kw
1 Rated Cooling Capacity KW 225
kcal/h 193500
RT 64
4  Capacity control % 0-25-50-75-100
5  Evaporator Evaporator Shell and tube type
Evaporator import and outlet diameter DN 200
Chilled water flow rate m³/h 145
6 No of the Refrigerant circuits  Qty. 2
7  Axial Fan input power KW 1.8KW
8 Condenser Efficient copper pipe and aluminum foil compact type finned heat exchanger
9 Refrigerant 　 R134A
10 Power specification 3P-380V-50HZ
11 Protection device Phase lack protection, phase reversion protection, overload current protection, exhaust temperature protection, low&high pressure protection, low-temperature protection.
12 Size MM L9000X W2200 X H2500
13 Weight KG 7400
14 Operating Weight KG 8000
